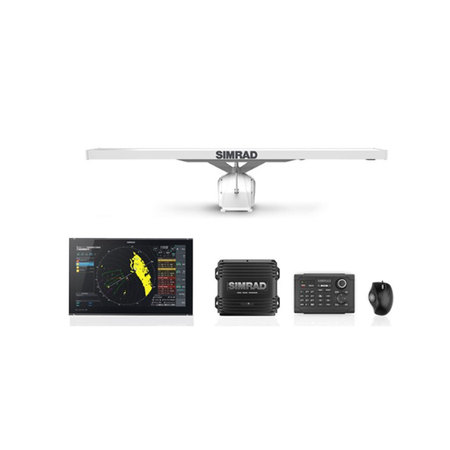

Type-Approved S-Band Radar
S-Band radar offers a secondary system to X-Band radar, and delivers superior target detection in harsh weather conditions such as rain or fog. This complete system meets type approval standards for use aboard CAT 2 SOLAS vessels, including high speed craft, and includes a lightweight 12-foot open array antenna with 30 kilowatt up-mast transceiver. An up-mast design supports easy and cost-effective installation, with just two thin cables between the antenna and the rest of the system. Cable runs of up to 65 metres are supported, and a digital connection between the transceiver and control station ensures a crystal clear picture.
Easy to Learn and Operate
Our R5000 systems are designed for ease of use, and feature a modern interface with intuitive keypad and trackball controls. The R5024 includes a 24-inch widescreen display to give operators constant access to key information, alerts, and settings without distracting from the central PPI. The same interface is used across our complete series of X-Band and S-Band solutions, offering a consistent experience for operators of multi-radar systems.
Simple and Flexible Installation
This modular system is based on the R5000 radar processor: a high performance ‘black-box’ system that connects directly to the transceiver via a thin and easy-to-route Ethernet cable. The R5000’s compact design enables easy installation, even aboard smaller vessels. Multiple R5000 processors can be networked together to create multi-radar systems, including up to four radar transceivers, four individual control stations, and additional ‘clone’ stations. In a fully networked system any station can control any connected radar system, offering both flexibility and redundancy.
